The assigned COM port appears in parenthesis at the end of the line with this entry: Cisco USB System Management Console. Identify the COM port that is assigned to the USB console port:Ĭlick the Hardware tab and then choose Device Manager. The port is shown in the following illustration. Use a Phillips screwdriver to loosen the captive screw on the cover that is shared by the USB micro type B console port andĬonnect a USB cable to the PC USB port, and connect the other end of the cable to the switch micro-B USB console port. If you are connecting the switch USB-mini console port to a Windows-based PC for the first time, install a USB driver. Before you beginĬomplete the following steps: If you are connecting the switch USB micro Type B console port to a Windows-based PC for the

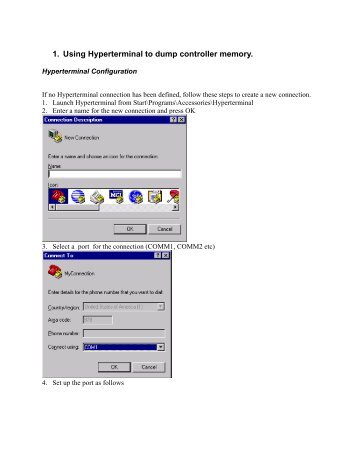

The PC or terminal displays the bootloader sequence.įollow the steps in the section Completing the Setup Program.Ĭomplete the following steps to access the CLI through the USB Micro Type B console port. The program, frequently a PC application such as HyperTerminal or ProcommPlus, makes communication between the switch andĬonfigure the baud rate and character format of the PC or terminal to match the console port characteristics:Ĭonnect power to the switch as described in the section Connecting to Power in this guide. Start the terminal-emulation program on the PC or the terminal. ProcedureĬonnect the RJ-45-to-DB-9 adapter cable to the 9-pin serial port on the PC, and then connect the other end of the cable to Accessing the CLI through the USB Micro-Type B Console PortĬomplete the following steps to access the CLI through the RJ-45 console port.Accessing the CLI through the RJ-45 Console Port.Use one of the following methods to access the CLI:Īccessing the CLI through the RJ-45 Console PortĪccessing the CLI through the USB Micro-Type B Console Port

You can enter Cisco IOS commands and parameters through the CLI.

This chapter provides a command-line interface (CLI)-based setup procedure for a switch.įor information about setting up the switch by using Express Setup, see the chapter Express Setup in this guide.īefore connecting the switch to a power source, review the installation Warnings section in this guide. Switch Configuration with the CLI Setup Program
